Door Mount
Specifications
| Model | NB-DFS30S |
|---|---|
| Dimension | 88W*136H*135D(mm) Cutting Size 85W*113H |
| Weight | 0.7kg |
| Ambient Temperature | -10~55°C (14~130°F) |
| Humidity | 0~95% Relative Humidity Non-condensing |
| Power Requirement | 100~240VAC 50/60Hz @ 6VA |
| Relay Output | Flame ON, Dry Contact 1SPDT Fault, Dry Contact 1SPDT |
| Contact Rating | 30Vdc 1A, 125Vac 0.5A |
| Analog Output | 4~20mAdc 0~10Vdc for Meter |
| Flame Pick-up Time | Less than 500msec |
| ON/OFF Delay Time | 0~5sec (default 3sec) |

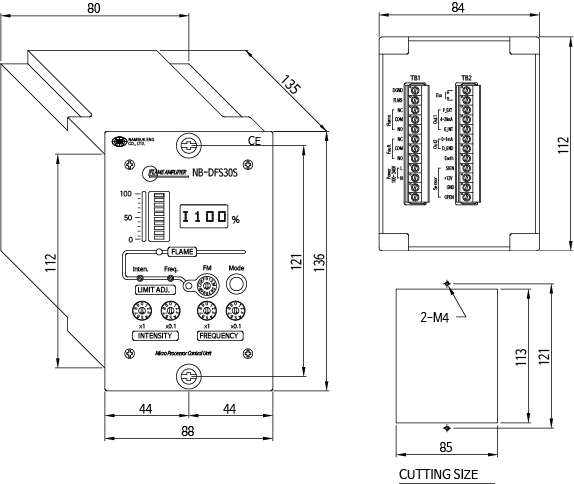

Outline & Dimension
